    Ultimate All-In-One package - Extrusion and CNC
    Ultimate All-In-One package - Extrusion and CNC
    Ultimate All-In-One package - Extrusion and CNC
    Ultimate All-In-One package - Extrusion and CNC
    Ultimate All-In-One package - Extrusion and CNC
    Ultimate All-In-One package - Extrusion and CNC
    Ultimate All-In-One package - Extrusion and CNC
    Ultimate All-In-One package - Extrusion and CNC
    Ultimate All-In-One package - Extrusion and CNC

    Product Details

    Description

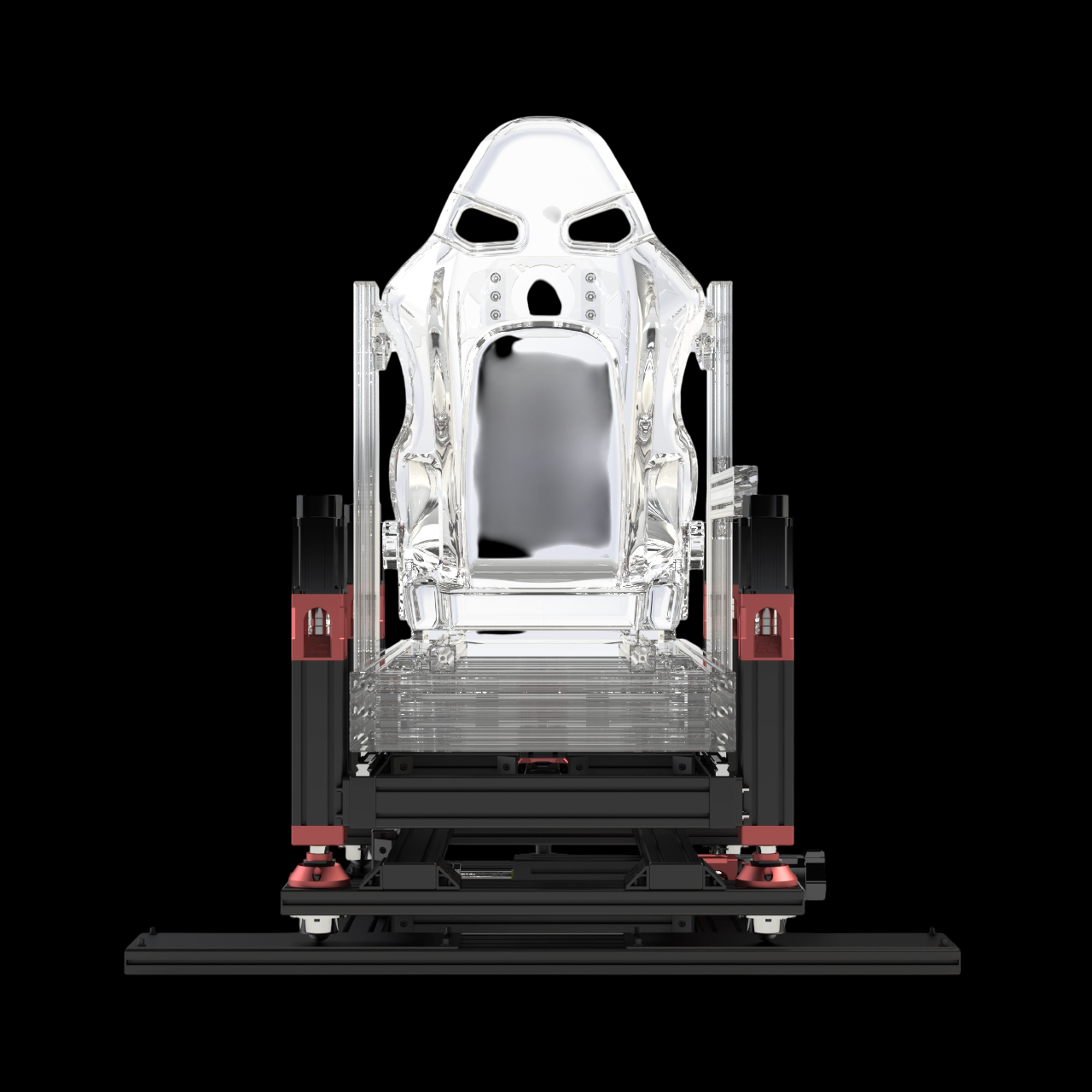

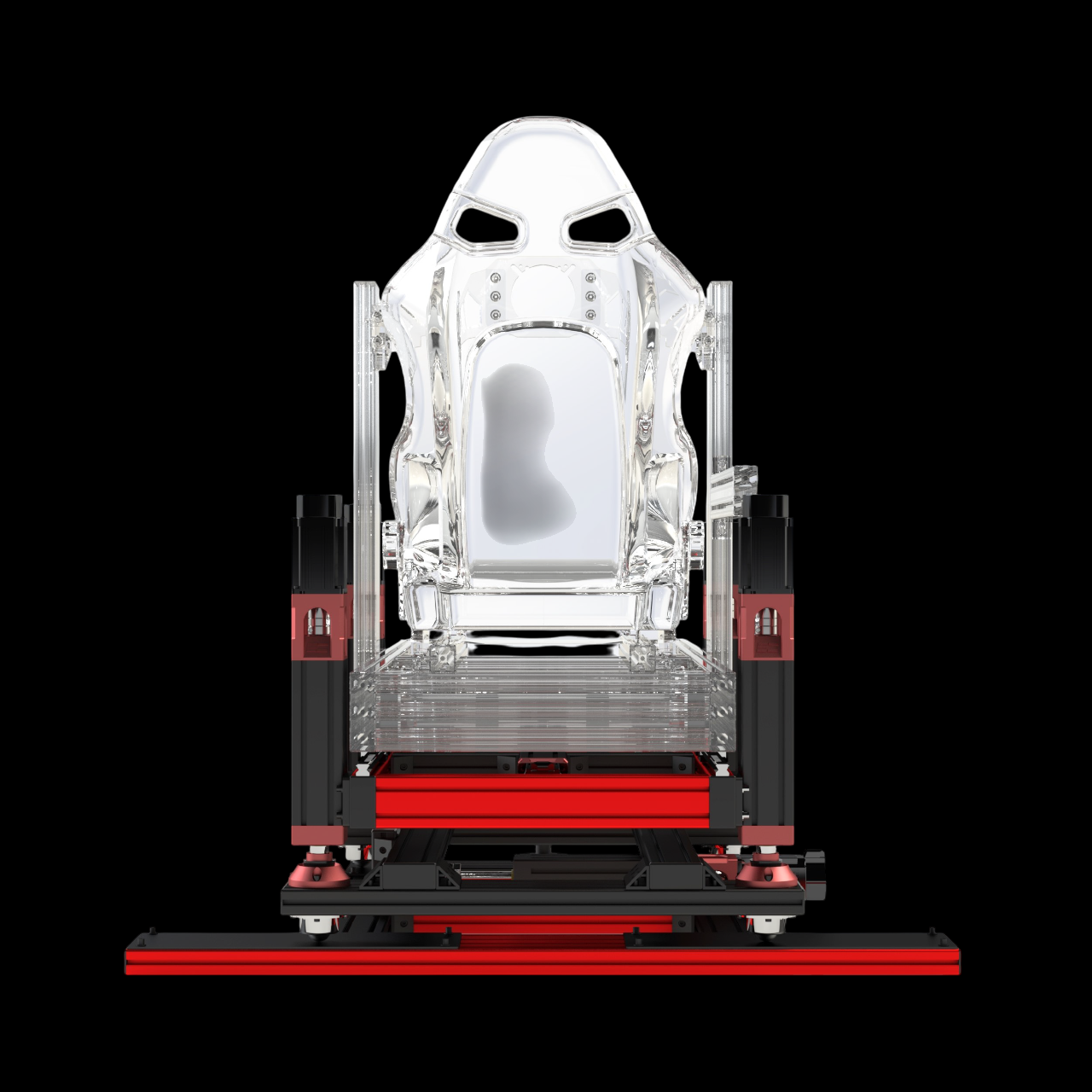

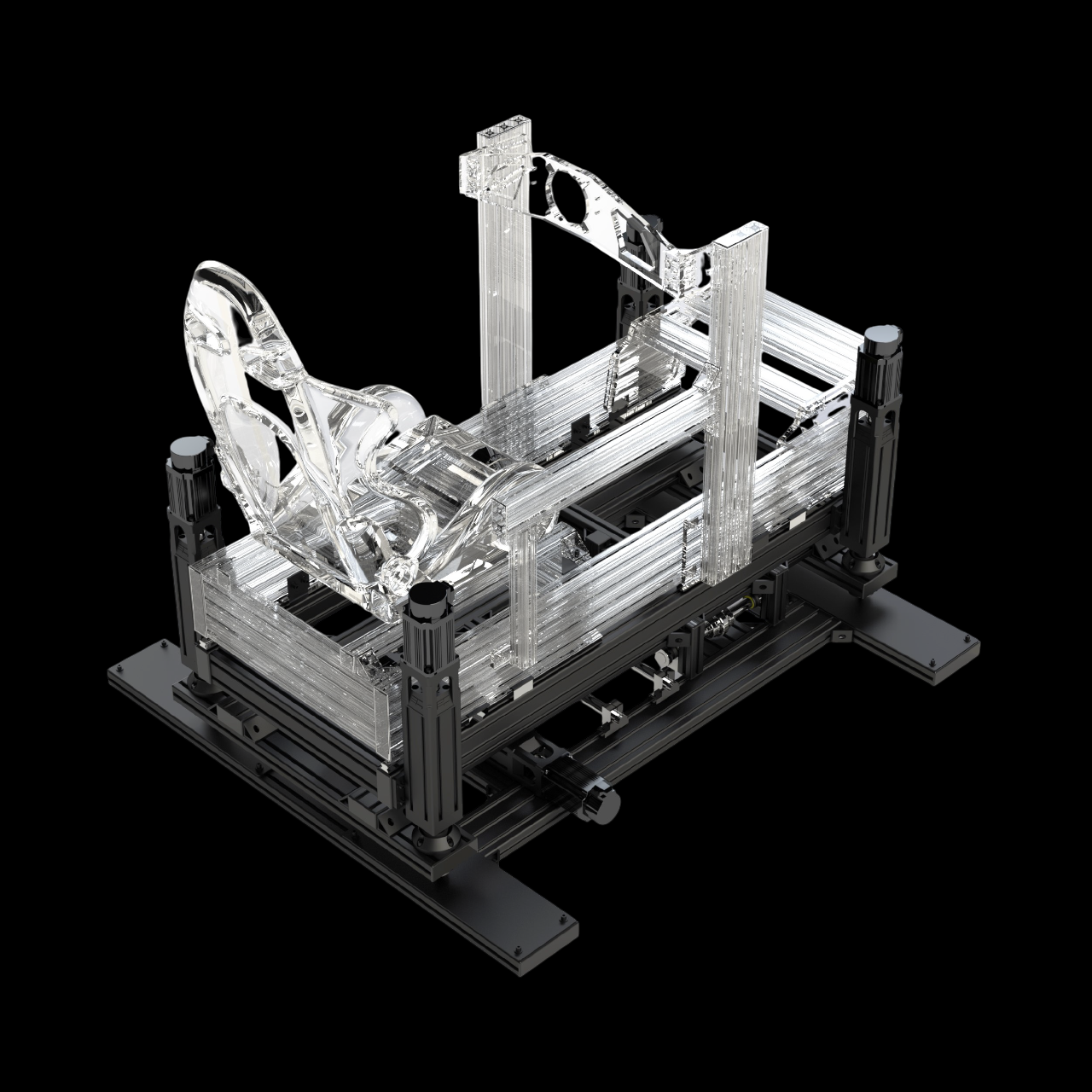

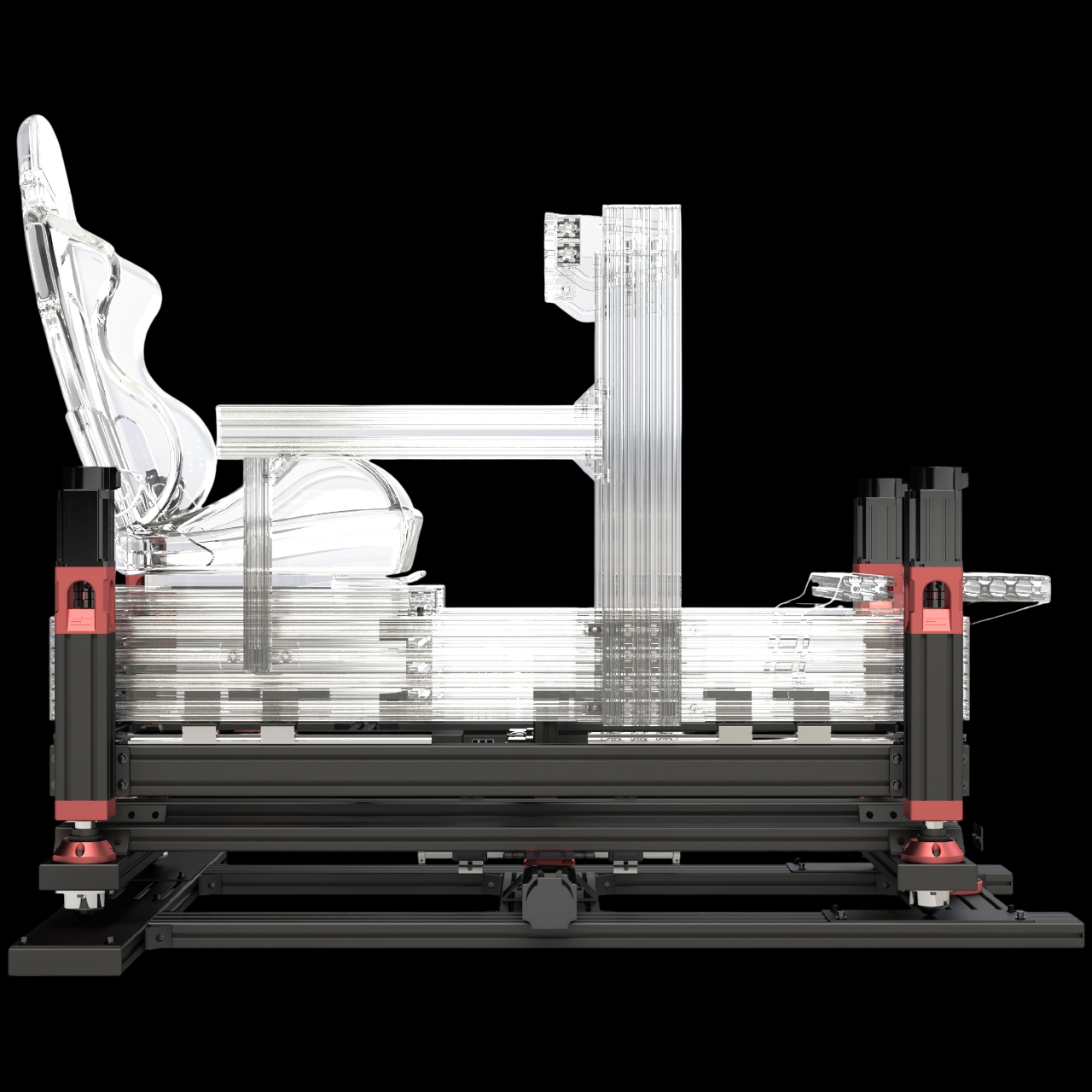

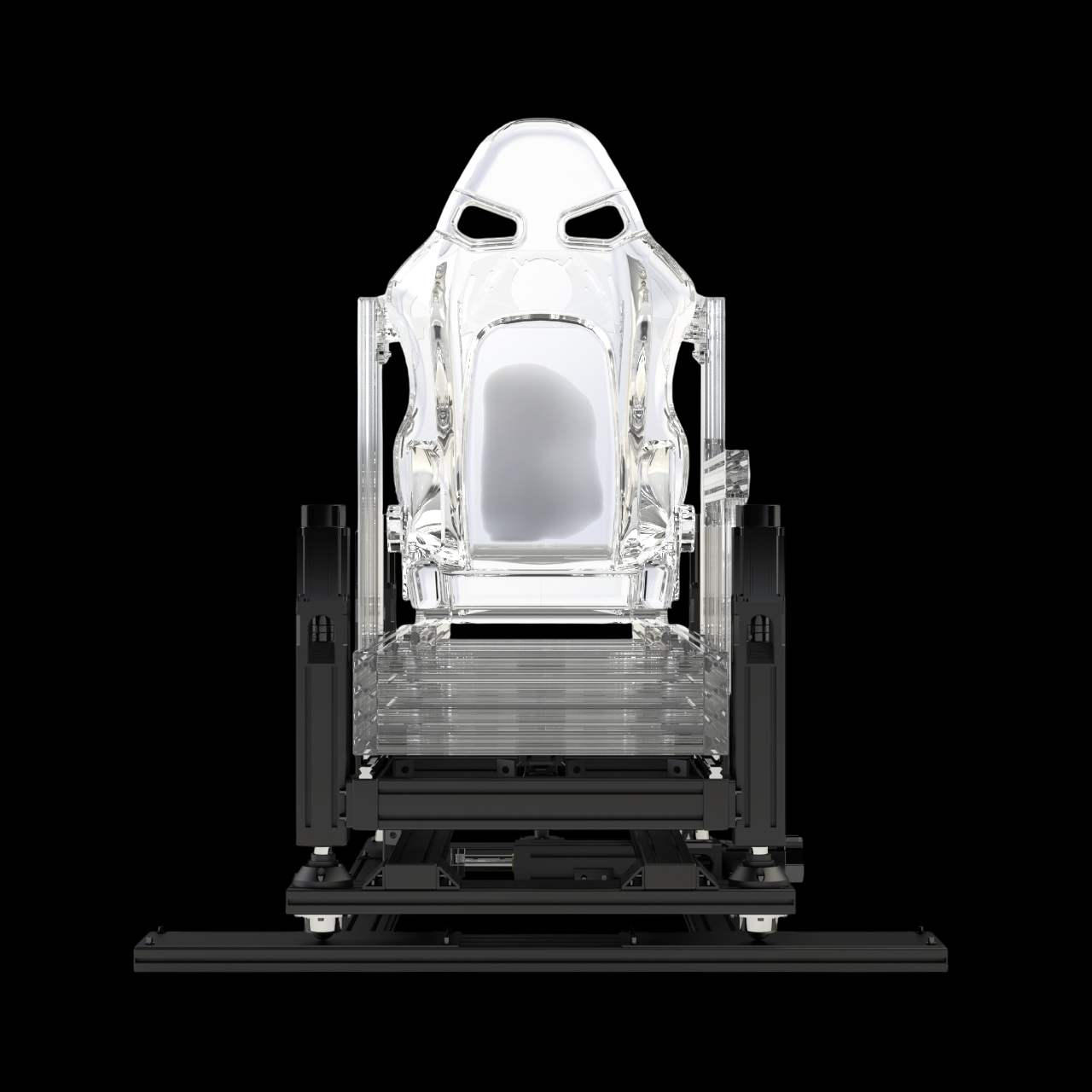

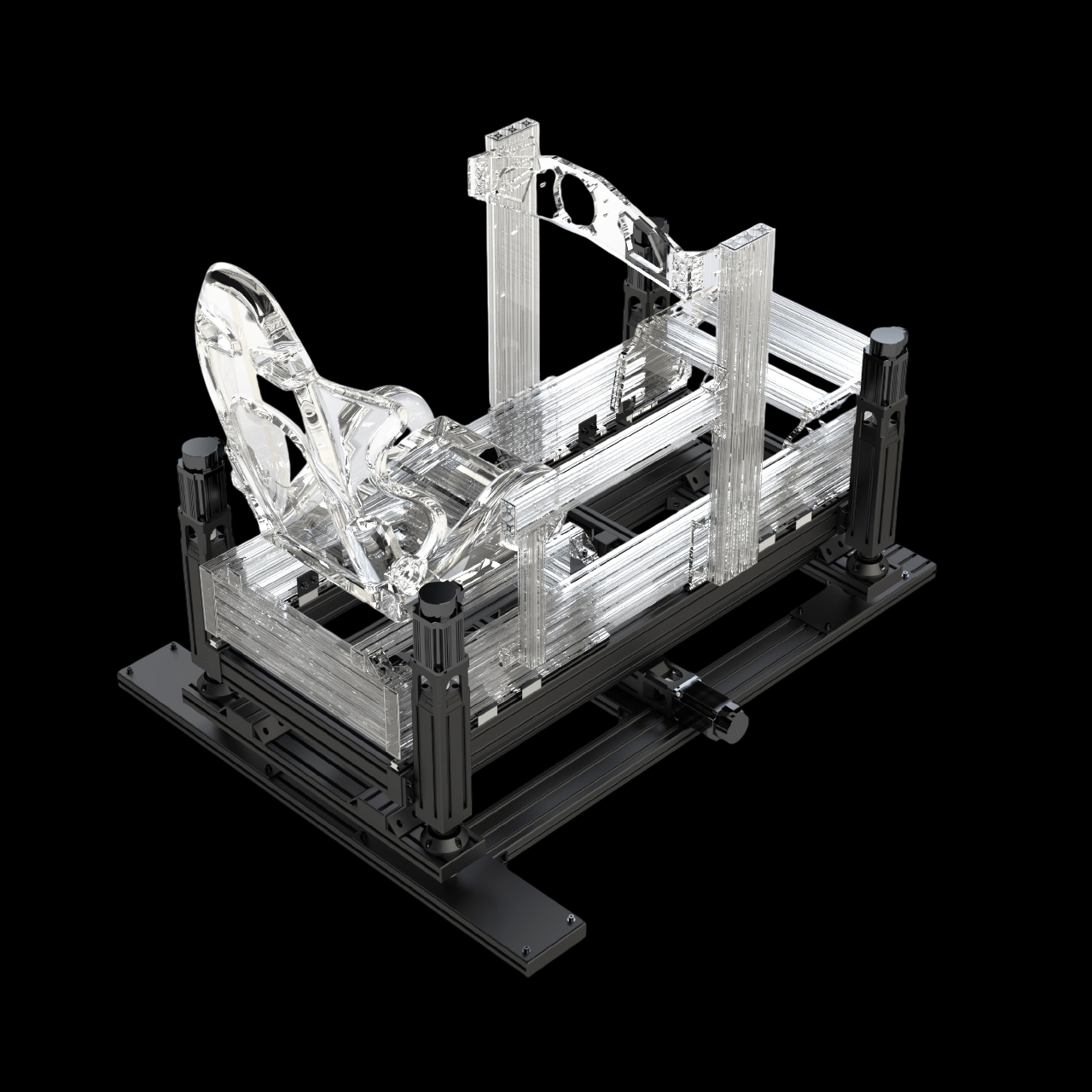

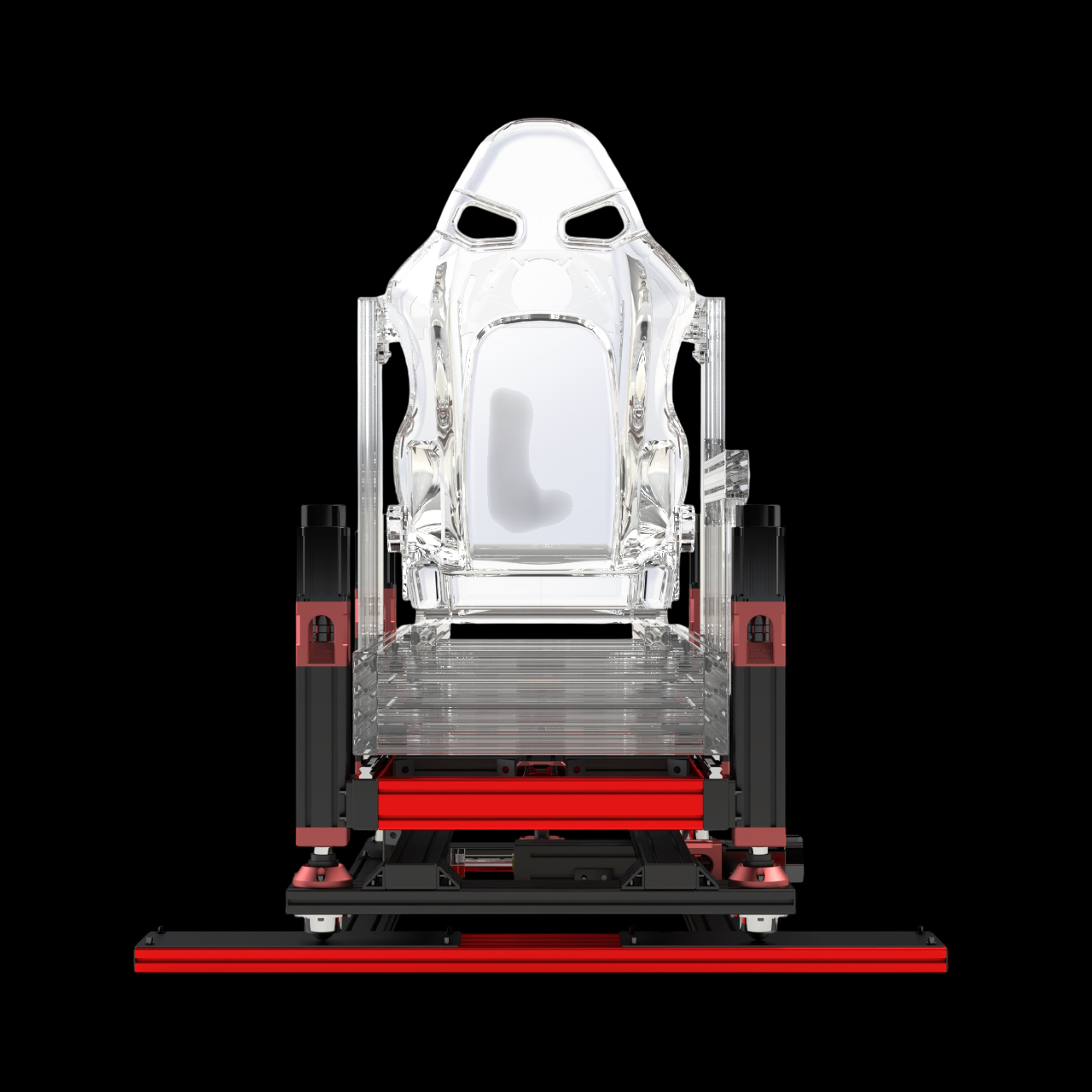

    This kit provides the ultimate 6DOF Motion System in one package

    Stroke: 150mm push and pull

    Speed: 250mm/s

    Servo Motor: 80mm flange, 750w

    Max Load: 180kg per actuator

    Voltage: 110-220V

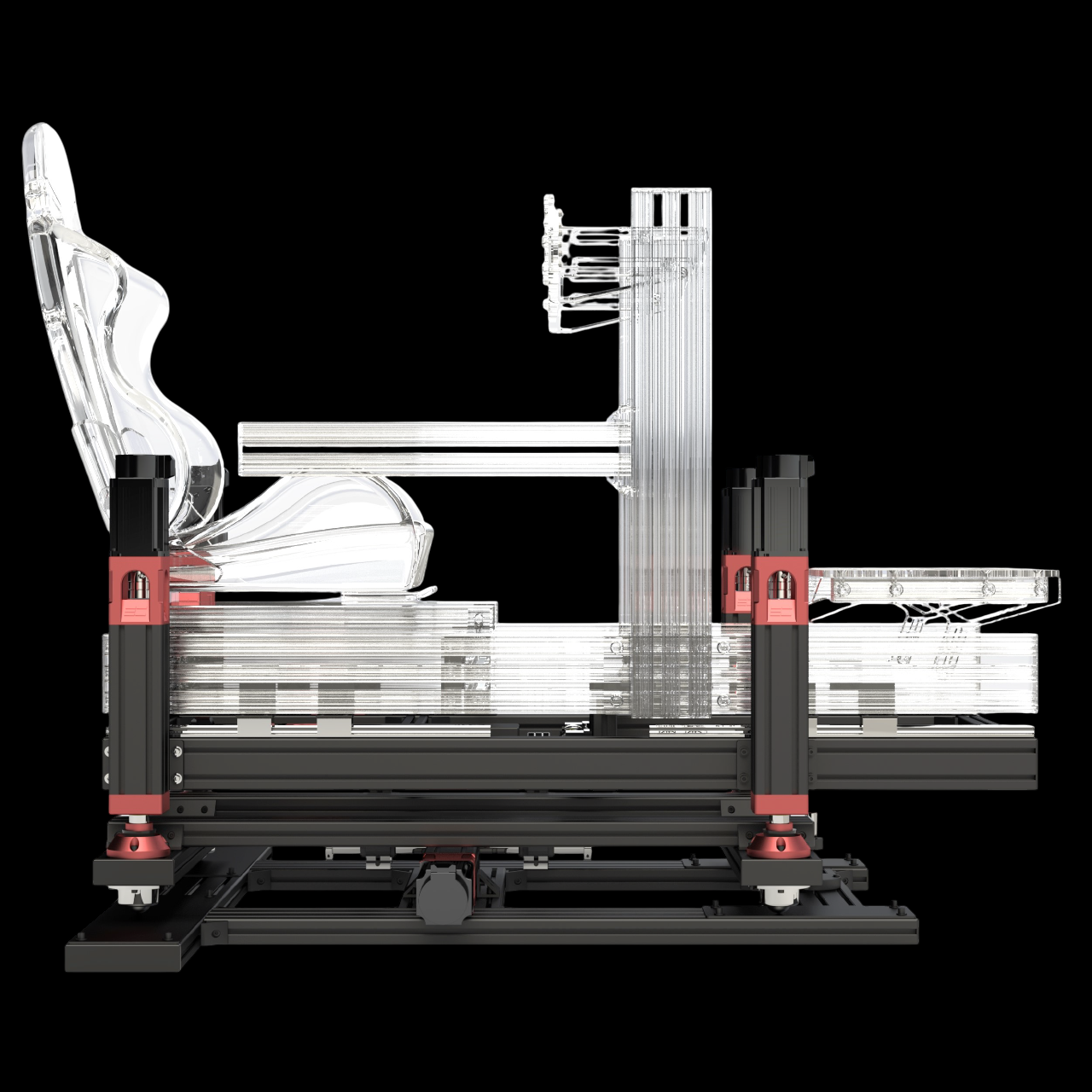

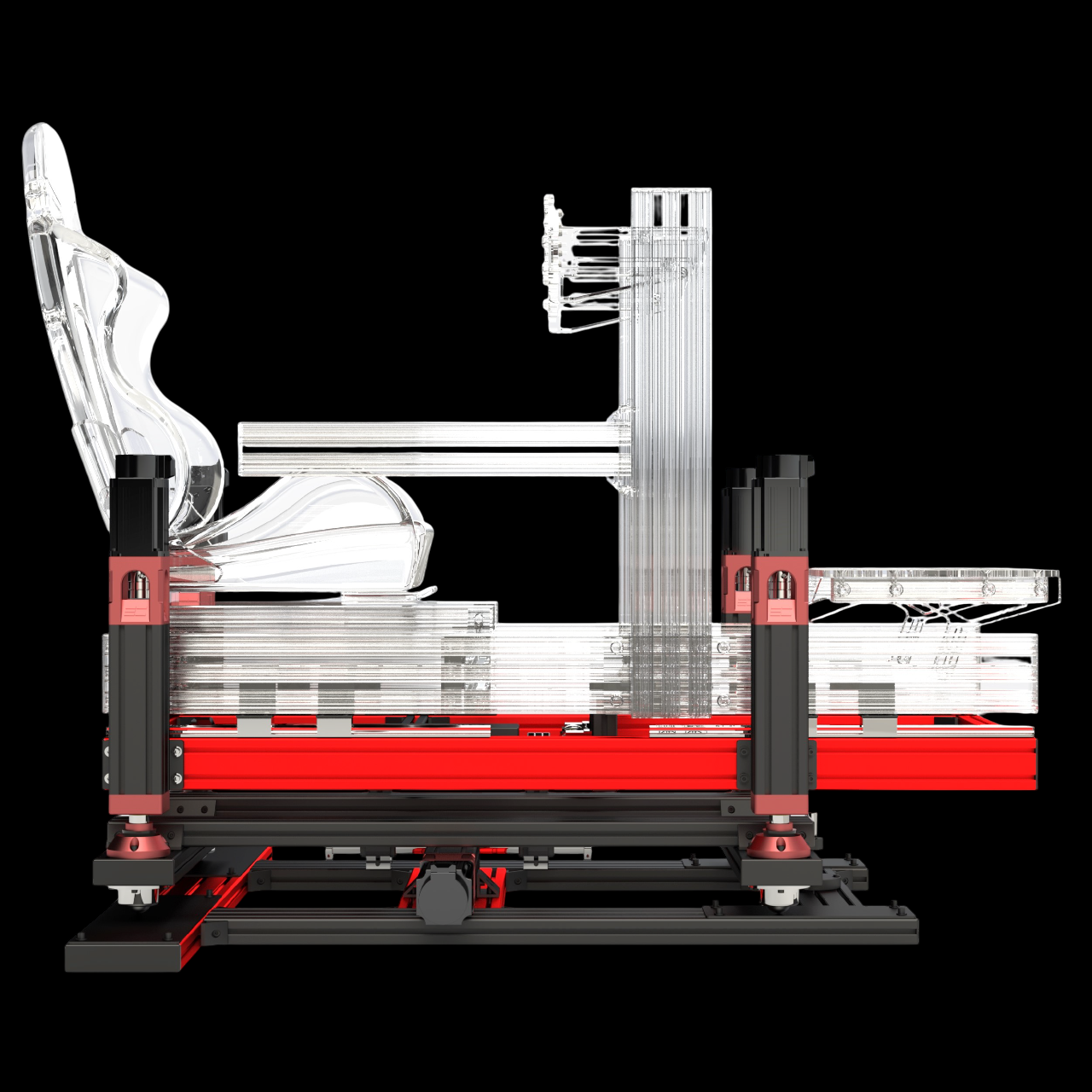

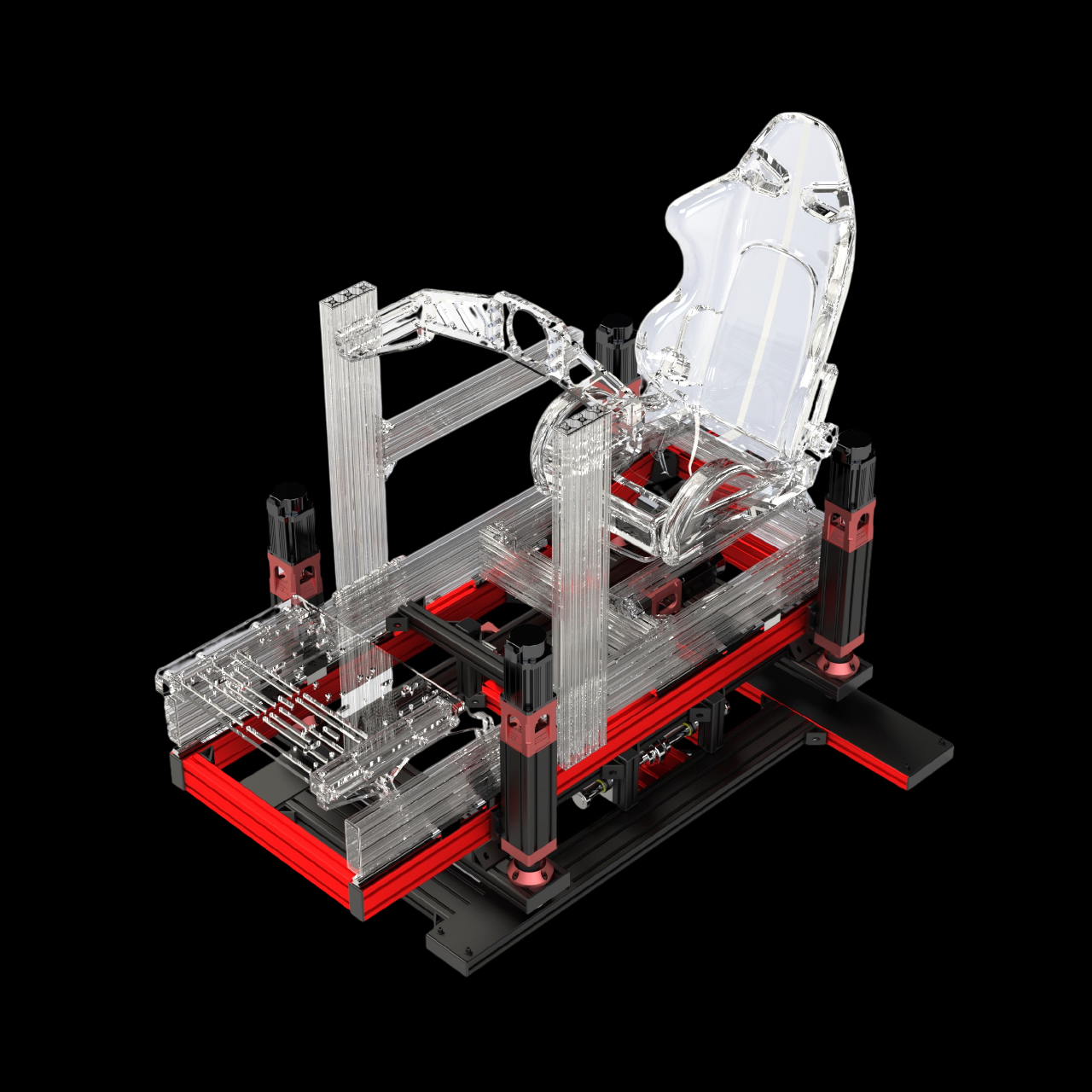

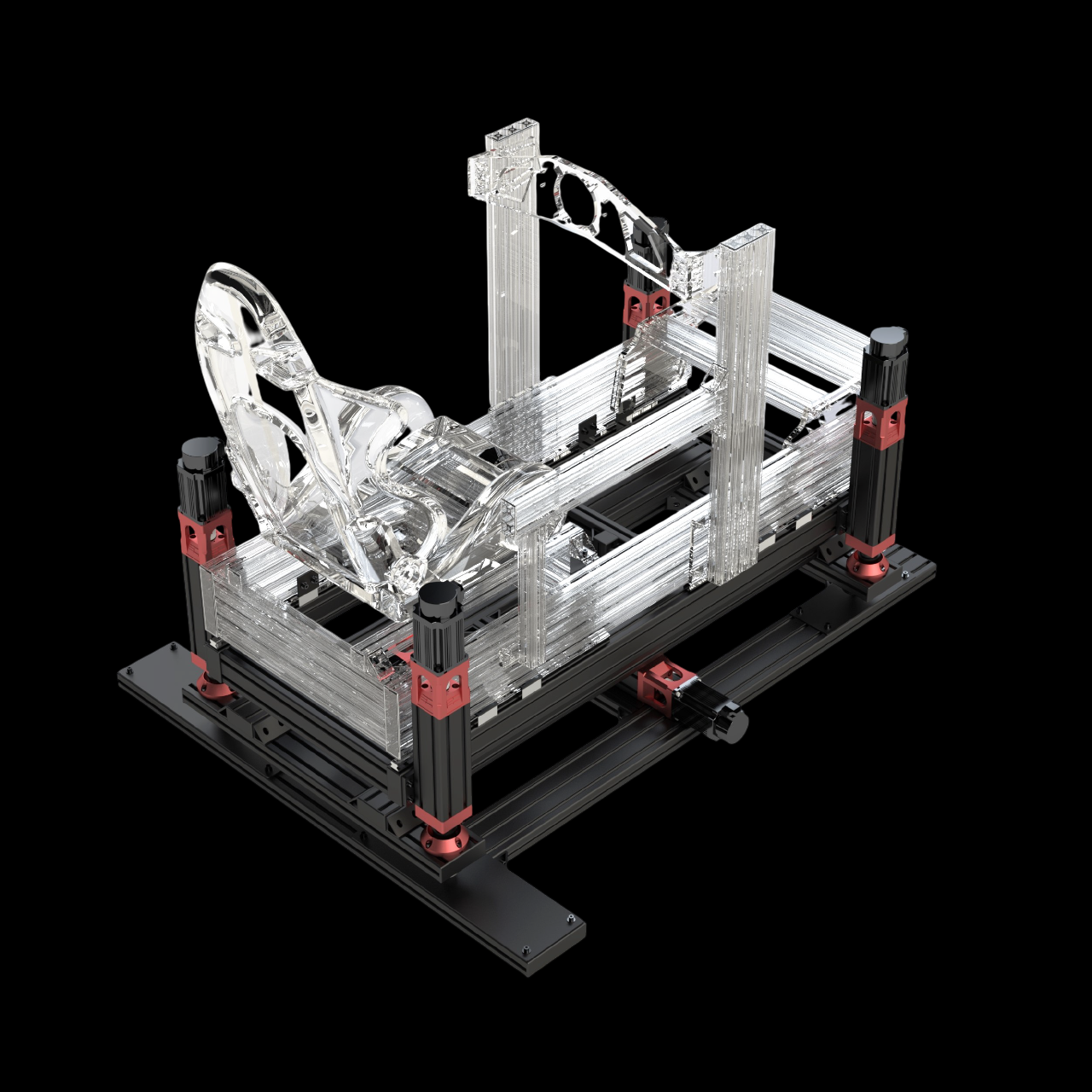

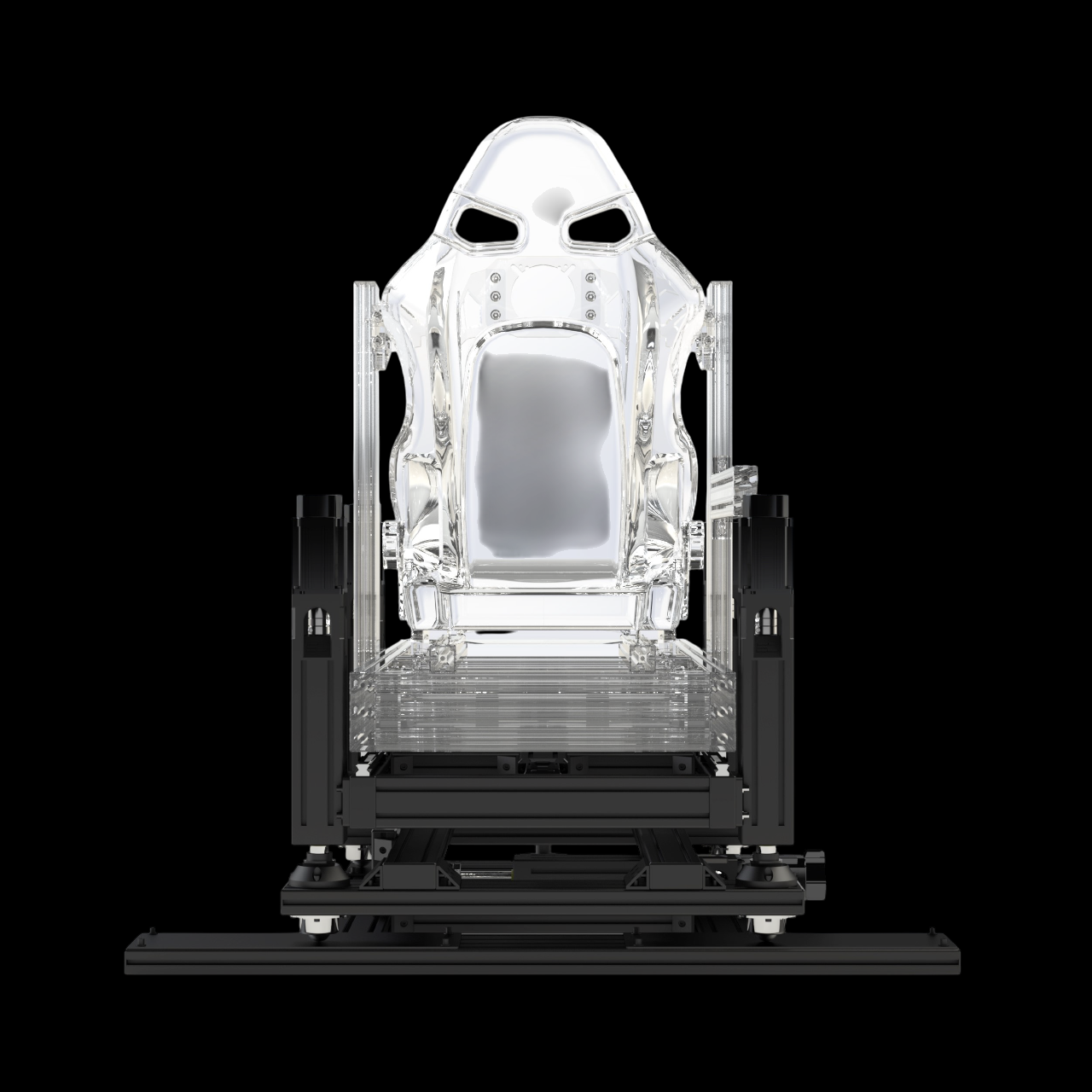

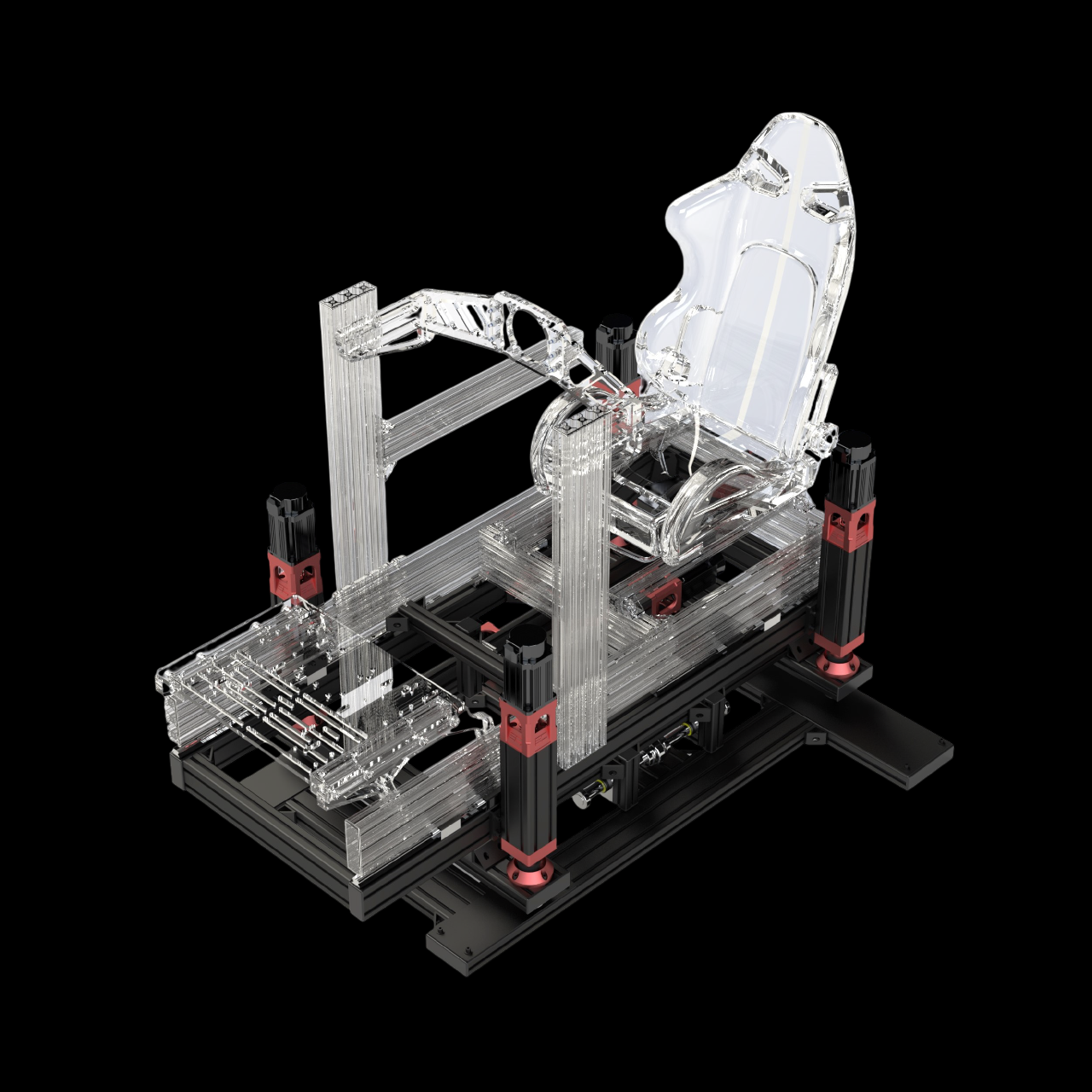

    Standard Ultimate Platform, fits cockpit with wheel house Dashboard / Front Mount of a 500mm width , with full dimensions of the traction loss L x W=1230 mm W=1250mm and Surge platform L x W L=1400mm W=580mm.

    Extended Ultimate Platform, fits cockpit with wheel house Dashboard / Front Mount of a 500mm width , with full dimensions of the traction loss L x W=1560 mm W=1250mm and Surge platform L x W L=1400mm W=580mm.

    Thanos AMC Controller

    Fully detailed LCD menu system (RGB screen)

    Supports up to 7 servos

    Automatic Home calibration on power up or re-connection without limit switches

    Automatic motion between Park position and Standby position and Online positions with adjustable timeout timers and speeds.

    Protection from exceeding physical limits of the actuator

    Optional Platform Health check, to ensure all actuators are active during gaming

    Adjustable stroke up to 2540mm

    Adjustable screw lead Pitch, 4mm, 5mm, 10mm or 25mm advance per revolution

    Adjustable direction for Inline or Foldback placement of servomotor

    Optional selection of belt reduction ratios (1:1, 1:1.5, 1:2) for foldback actuators.

    Support for rotary actuators

    200kHz pulse rate for positioning

    Latency as low as 1ms in SRS, FlyPT Mover and Simtools

    E-stop, Park/Standby, Force Offline buttons and LED indicators

    Remote parameters via PC software interface

    Rolling Average Filter for anti-vibration pulses on the servomotor

    Spike Filter to automatically eliminate jolts during crashes or unwanted motion cues

    Package Includes

    Aluminium Profiles anodised based on chosen option

    Attachment Brackets

    All kind bolts and nuts

    4 x Stainless steel casters

    4 x Aluminium casters rolling / support plates

    1 x Pivot point bearing assembly

    2 x pull bar assembly

    4 x Aluminium Holder Cups for actuators set

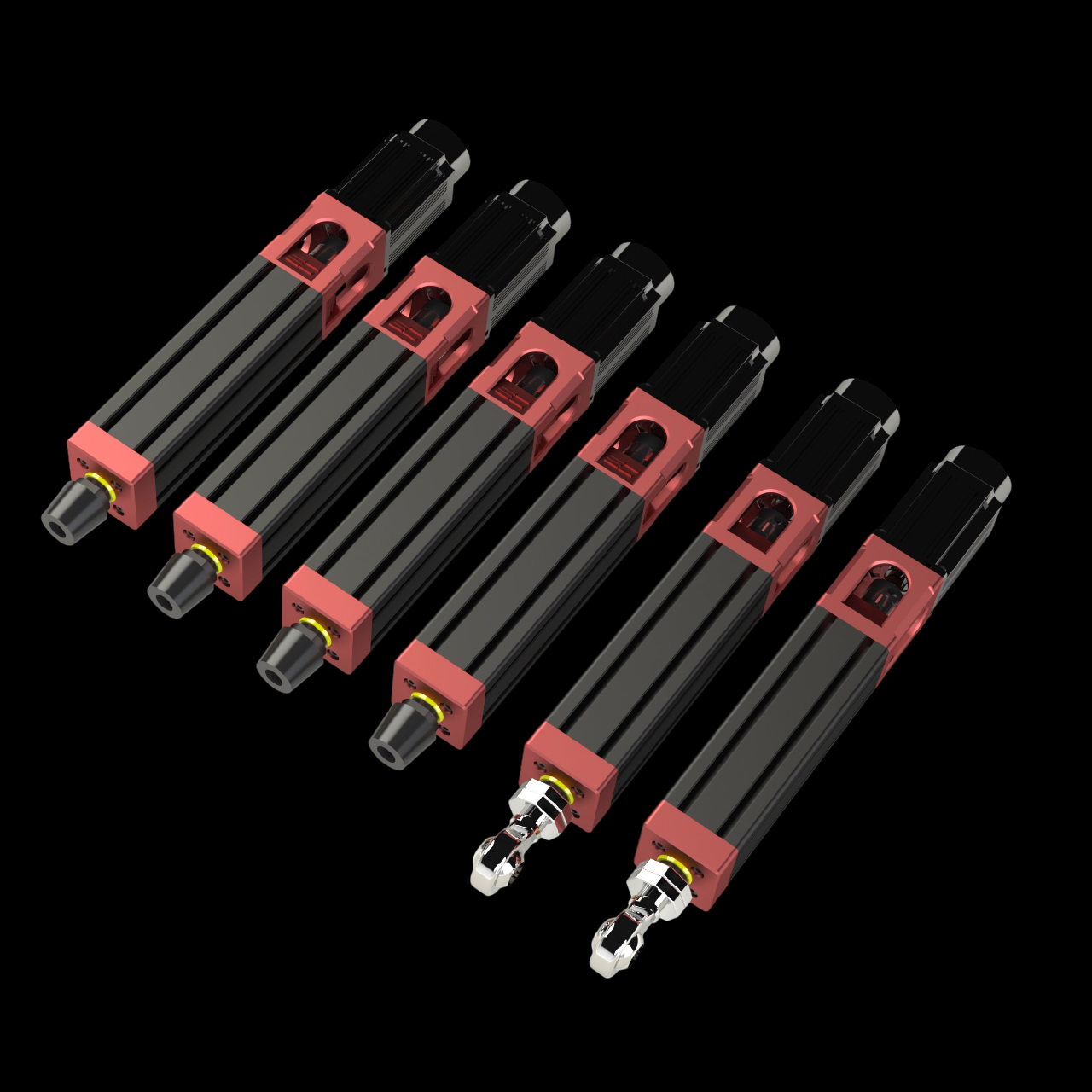

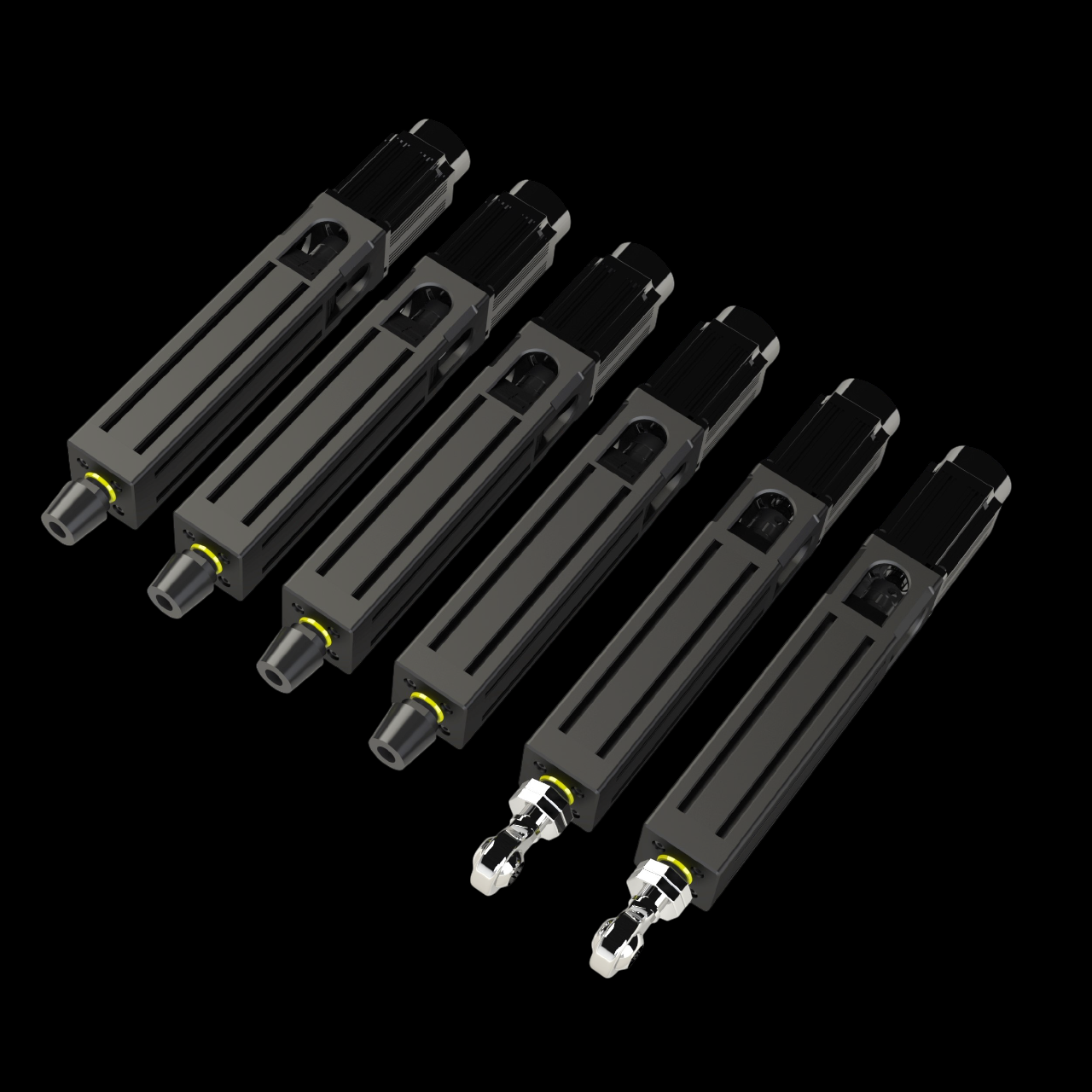

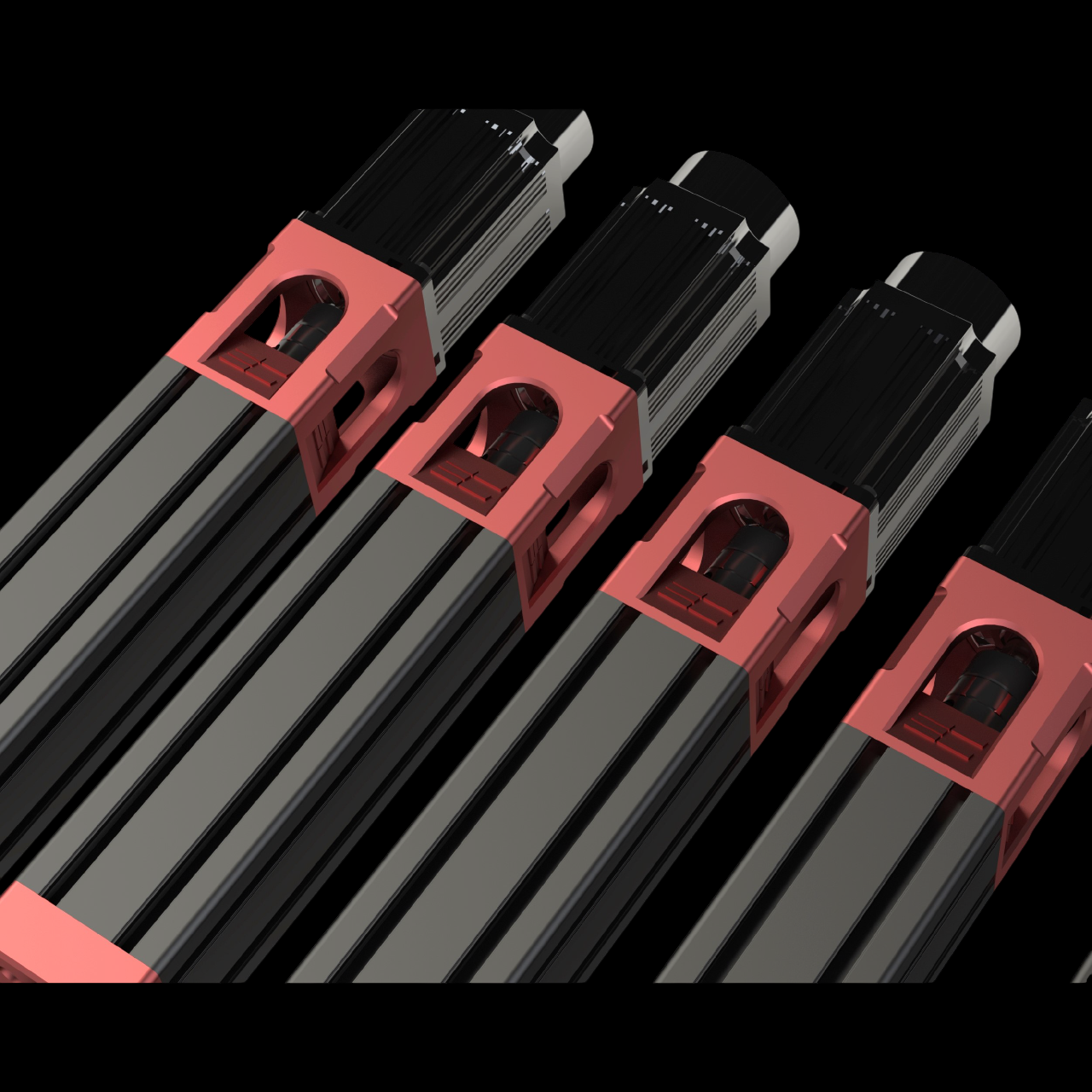

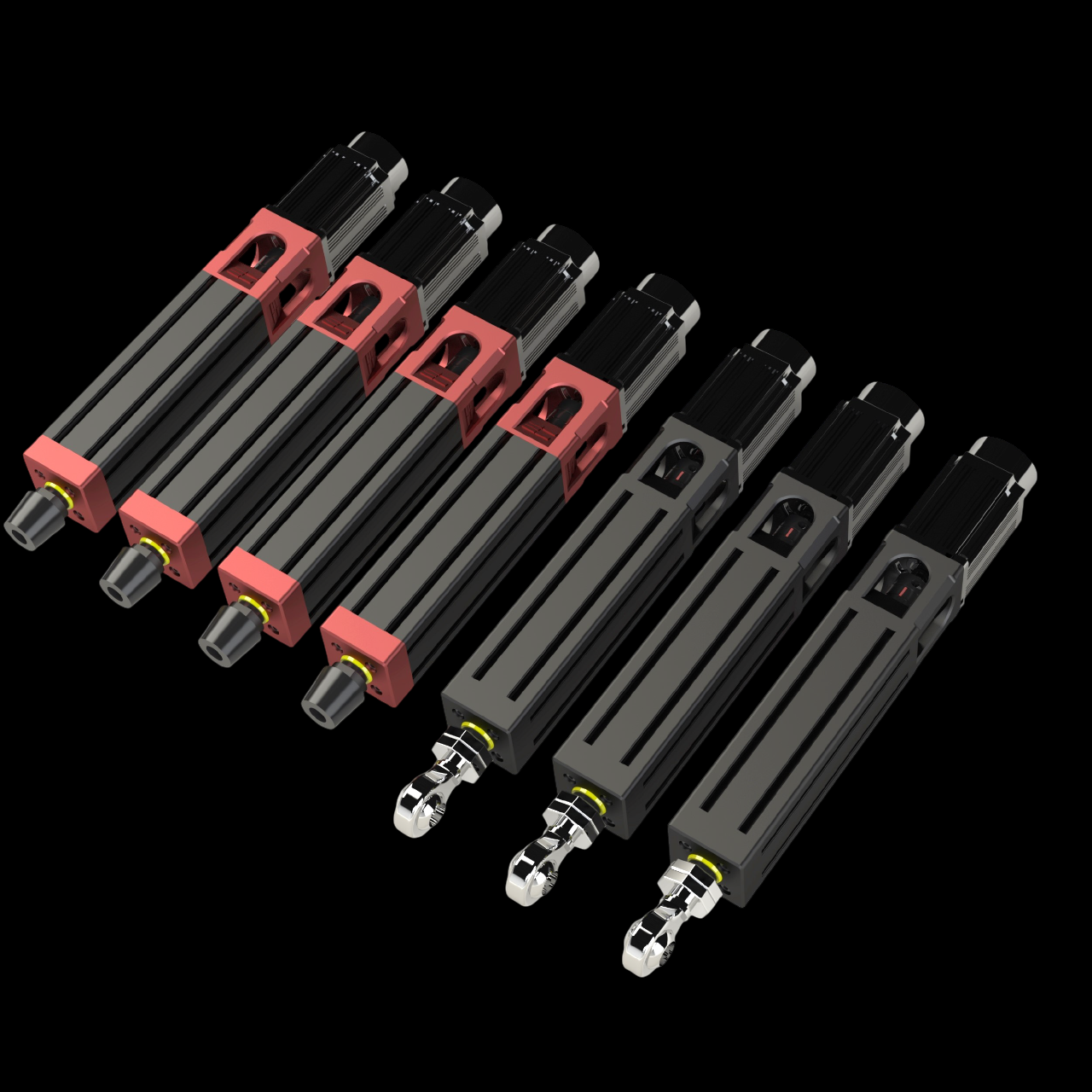

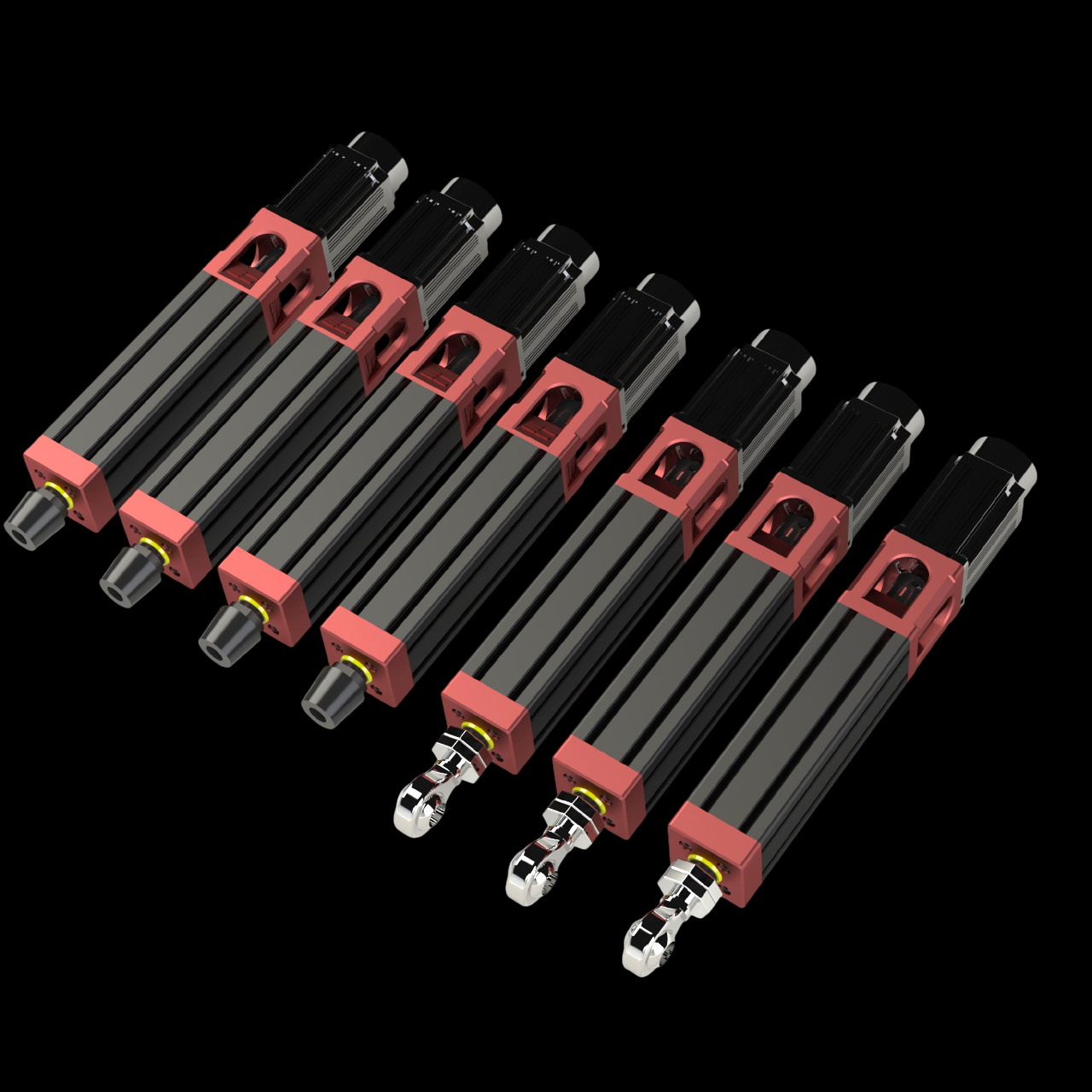

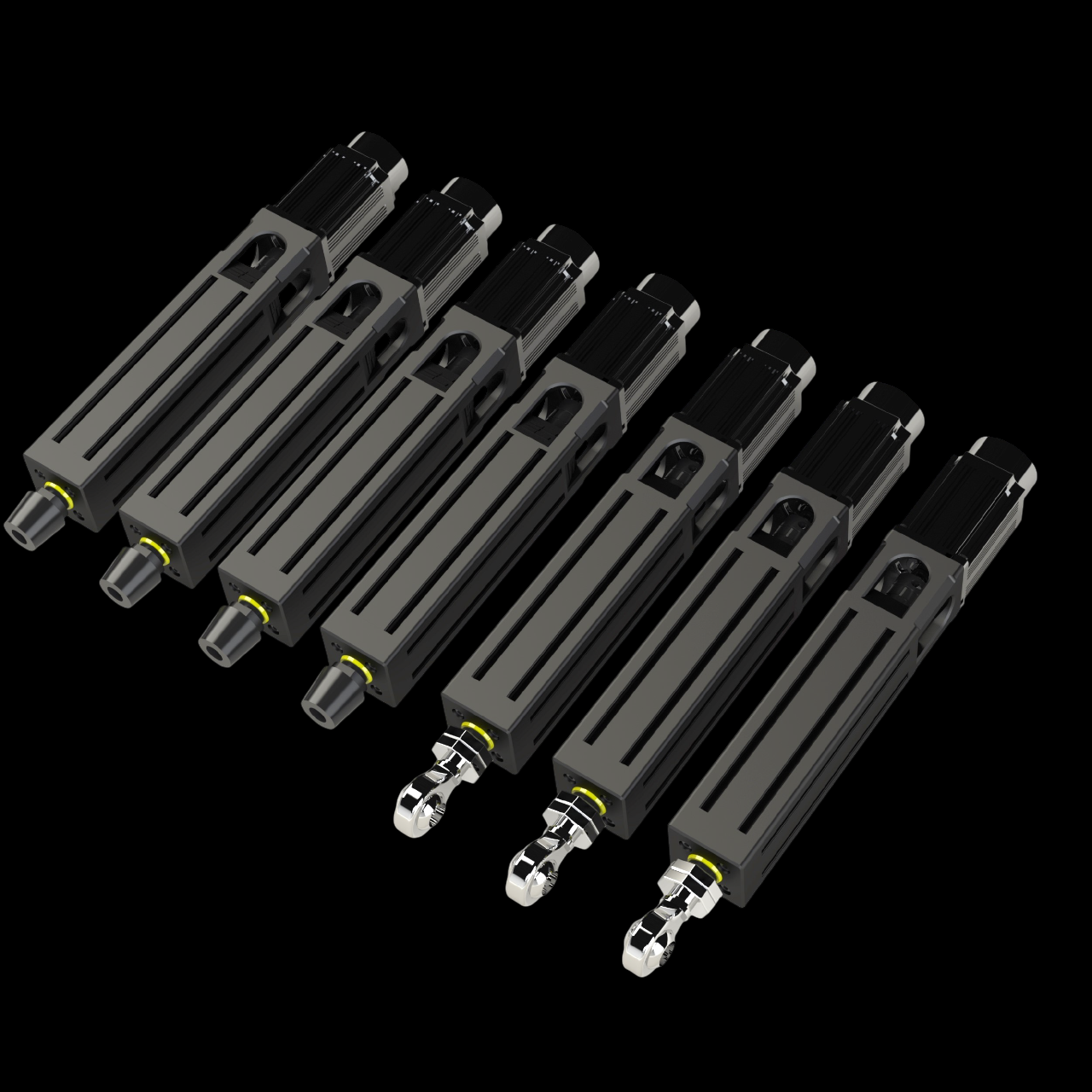

    6 x Actuators 150mm With Servo Motors made of 6061-T6 Grade Aluminum motor mount cup and motor shaft Cup Anodised

    6 x 80 x 80 aluminium Profiles 61-63-T6 Aluminium Grade Black/Red Anodised

    6 x 80st-m02430 Servo Motor

    6 x Latest AASD-15A V6.3.1 servo drivers latest

    6 x 4 Meter Motor Cable shielded cable

    6 x 4 Meter Encoder shielded cable

    E-Stop Switch with 5 meter shilded carbe and customized RJ45 connector  sutable for Thanos AMC/4U

    6 x Power Cables

    6 x DB25 1.5 meter Male to Male Customized Shielded Cables

    4 x Attachment plates

    15 pcs cable binder with zip ties

    15U Network Cabinet with Toughened  front door glass

    2 x 1U rack-mounted 6-unit 13A UK Plug PDU Power Strip Network Cabinet Rack Socket 2M Extension Cable Standard Outlet Switch Supply Power

    2 x 1U 24 Slot Rack Mount Horizontal Cable Manager Duct Raceway

    1 x Fixed Shelf for Network Rack Cabinet

    Compatibility

    Compatible with all 40 series profiles racing rigs for attachment

    Compatible with all control systems , thanos , SFX shield.. etc

    SimHub

    Sim Rcing Studio

    Sim Tools

    FlyPT Mover

    Not Include

    Servo Motors Controller (applies only for without controller option)

    Cockpit

    seat

    Weight and Mesurmants

    Standard Total weight includs packing 195 KG ± 5 kg

    1Box 610mm x 410mm x 190mm 28kg

    1Box 1430mm x 156mm x 156mm 17kg

    1Box 1520mm x 310mm x 310mm 36kg

    1Box 680mm x 420mm x 370mm 29kg

    1Box 680mm x 420mm x 370mm 29kg

    1Box 230mm X 620 mm X 89 mm 28kg

    1Box 610mm x 410mm x 190mm 28kg

    Extended Total weight includs packing 215 KG ± 5 kg

    1Box 610mm x 410mm x 190mm 28kg

    1Box 1430mm x 156mm x 156mm 26kg

    1Box 1520mm x 310mm x 310mm 45kg

    1Box 680mm x 420mm x 370mm 29kg

    1Box 680mm x 420mm x 370mm 29kg

    1Box 230mm X 620 mm X 89 mm 29kg

    1Box 610mm x 410mm x 190mm 29kg

    Highlights

    Standard Ultimate Platform, fits cockpit with wheel house Dashboard / Front Mount of a 500mm width , with full dimensions of the traction loss L x W=1230 mm W=1250mm and Surge platform L x W L=1400mm W=580mm.

    Extended Ultimate Platform, fits cockpit with wheel house Dashboard / Front Mount of a 500mm width , with full dimensions of the traction loss L x W=1560 mm W=1250mm and Surge platform L x W L=1400mm W=580mm.
